Inputs¶

MeqSilhouette accepts as inputs various telescope, sky, and observation parameters in different formats. The master input file is a JSON parset containing many input parameters. Sample input files and settings can be found in the data subdirectory. Each input file type is explained in detail below.

JSON parset file¶

The input parset file is in JSON format with parameters that are loosely grouped into the following sets:

General I/O parameters
Measurement Set (MS) parameters (prefixed ms_)
Imaging parameters (prefixed im_)
Tropospheric parameters (prefixed trop_)
Antenna pointing error parameters (prefixed pointing_)
Bandpass corruption parameters (prefixed bandpass_)

Parameters in JSON parset file¶
Parameter	Type	Units	Explanation
outdirname	string		Output directory with absolute or relative path. Must be writable.
input_fitsimage	string		Directory containing sky models in FITS image format or ASCII/Tigger-LSM file containing the source list with absolute or relative path. See Sky models.
input_fitspol	bool		Indicate that the FITS sky models are polarised. Used only when input_fitsimage is a directory containing FITS sky models.
input_changroups	int		The number of groups into which the total number of frequency channels must be divided. Used only when input_fitsimage is a directory containing FITS sky models. Must be equal to the number of frequencies for which the FITS files are present.
output_to_logfile	bool		Write output messages to logfile instead of to the terminal.
add_thermal_noise	bool		Add baseline-dependent thermal noise, calculated using station SEFDs obtained from station_info file.
exportuvfits	bool		Export MS to UVFITS format.
station_info	string		Name of the file containing individual station information such as SEFD, coherence time, primary beam model etc., with absolute or relative path. See Station and site information.
bandpass_enabled	bool		Add complex bandpass corruptions.
bandpass_table	string		Name of the ASCII file containing bandpass gain amplitudes for each station for a set of frequencies with absolute or relative path. Each line consists of the station name and a string containing the bandpass amplitude for both polarisations in the format (bpass_ampl_pol1, bpass_ampl_pol2) for each representative frequency. Each column represents a frequency value in GHz. The phases are generated randomly between -30 and +30 degrees.
bandpass_freq_interp_order	int		Order of spline interpolation. Integer between 1 and 5.
bandpass_makeplots	bool		Generate bandpass plots.
elevation_limit	double	radians	Flag visibilities below this elevation limit.
corr_quantbits	int		Number of bits used for quantisation by the correlator (e.g. 2 for four levels). Used to compute correlator efficiency.
predict_oversampling	int		Oversampling factor to improve the accuracy of forward modelling with WSClean. Must be an odd number (e.g. 8191).
predict_seed	int		Seed for random number generation with numpy. Set to -1 will disable seeding.
ms_antenna_table	string		Name of CASA ANTENNA table to use for creating the MS, with absolute or relative path.
ms_datacolumn	string		Name of the MS column to write the output visibilities to. Commonly used values are ‘DATA’, ‘CORRECTED_DATA’, or ‘MODEL_DATA’.
ms_RA	double	degrees	Right Ascension of the pointing centre of the observation.
ms_DEC	double	degrees	Declination of the pointing centre of the observation.
ms_polproducts	string		Specify the polarisation feed type in CASA recognisable format (e.g. ‘RR RL LR LL’ or ‘XX XY YX YY’).
ms_nu	double	GHz	Centre frequency of the bandpass.
ms_dnu	double	GHz	Bandwidth of the spectral window.
ms_nchan	int		Number of channels.
ms_obslength	double	hours	Duration of the observation.
ms_tint	double	seconds	Integration time.
ms_StartTime	string		Starting time of the observation (e.g. ‘UTC,2017/04/01/00:00:00.00’).
ms_nscan	int		Number of scans in the observation.
ms_scan_lag	double	hours	DEPRECATED. Left intact for backward compatibility.
ms_makeplots	bool		Generate plots of the data such as uv-coverage and uv-distance sensitivity bins.
ms_correctCASAoffset	bool		In a two-step process, correct for the spurious offset introduced by CASA to the start-time of the observation. Simulate an MS of the same duration as the required observation (but with a much longer integration time) to calculate this offset and adjust the start-time by this value to create an MS that starts at the required time.
make_image	bool		Make dirty image using lwimager. The im_ parameters are used only when this parameter is True.
im_cellsize	multi		Cell size to be used for imaging with units (e.g. ‘3e-6arcsec’).
im_npix	int	pixels	Image size.
im_stokes	string		Stokes parameter to image. Allowed values are ‘I’, ‘Q’, ‘U’, or ‘V’.
im_weight	string		Weighting scheme to use for imaging. Allowed values are ‘uniform’, ‘natural’, or ‘briggs’.
trop_enabled	bool		Enable corruptions by the troposphere. The other trop_ parameters are used only when this parameter is True.
trop_wetonly	bool		Simulate only the wet component (i.e. the component due to water vapour).
trop_attenuate	bool		Enable attenuation by the troposphere.
trop_noise	bool		Include sky noise from the troposphere.
trop_turbulence	bool		Add Kolmogorov turbulence to the simulated visibility phases.
trop_mean_delay	bool		Add mean (i.e. non-turbulent) delays due to the mean tropospheric component (both dry and wet).
trop_percentage_calibration_error	float		DEPRECATED. Left intact for backward compatibility.
trop_fixdelays	bool		Insert time-invariant delays computed by taking the mean over the spectral window.
trop_fixdelay_max_picosec	int	picoseconds	DEPRECATED. Maximum absolute value of the constant delays generated when trop_fixdelays=True in picoseconds. Used mainly for testing specific calibration experiments such as fringe-fitting. Regardless of the value of this parameter, the delays are computed by averaging over a spectral window.
trop_makeplots	bool		Generate troposphere-related plots such as zenith opacity, elevation-dependent transmission, zenith sky temperature, and turbulent phase errors and delays.
pointing_enabled	bool		Enable pointing errors. The other pointing_ parameters are used only when this parameters is True.
pointing_time_per_mispoint	float	minutes	Generate new pointing error per station every this minute.
pointing_makeplots	bool		Generate pointing offset-related plots.
uvjones_g_on	bool		Add time-varying station-based complex gains (G-Jones). The per-station values to be used to generate the gains are read from the station_info file.
uvjones_d_on	bool		Add instrumental polarisation. Polarisation leakage (D-Jones) and parallactic angle rotation (P-Jones) are added. The per-station values to be used to generate the leakage values are read from the station_info file.
parang_corrected	bool		Indicate if the correction for parallactic angle rotation has already been made. If True, rotate the visibilities by twice the field angle. If False, perform parallactic angle rotation correction before introducing polarisation leakage (D-Jones) (Leppanen et al. 1995).

Note

Ensure that ms_nchan != 1 when trop_enabled = True. AATM may fail while when there is only one frequency channel present in the MS. If only one (e.g. averaged) frequency channel is desired, the tropospheric corruptions must be calculated at a higher frequency resolution and the channels manually averaged at the end of the simulation run.

Sky models¶

The parameter input_fitsimage points to sky models in one of three formats that are recognisable by MeqSilhouette.

FITS format¶

Sky models in FITS format are forward-modelled using WSClean under the hood. The directory pointed to by input_fitsimage must contain all FITS files that constitute the sky model, named according to the following convention:

If there is no time-variability or polarisation, then input_fitsimage contains only one FITS image named t0000-model.fits.
If the sky model is time-variable, the FITS files named txxxx-model.fits, where xxxx=0000, 0001, … . The total number of unique times in the MS are divided evenly into N groups, where N is the number of times for which FITS files are present.
If the sky model is polarised, the FITS images are named txxxx-[IQUV]-model.fits, representing each Stokes component [I, Q, U, V]. All Stokes components must be present for each time and frequency.
If the sky model is frequency-variable, the FITS files are named t0000-yyyy-model.fits, where yyyy=0000, 0001, … . The number of frequencies must be equal to input_changroups.

Following WSClean, MeqSilhouette does not care about the actual frequencies in the FITS headers. This means that the input channels in the MS will be divided evenly into input_changroups groups and each FITS image along the frequency axis will be used to predict visibilities into the appropriate group, regardless of the frequencies in the FITS headers.

Putting all of the above together, a time and frequency varible polarised sky model will consist of a series of FITS files named txxxx-yyyy-[I,Q,U,V]-model.fits, where xxxx=0000, 0001, …. (as many as needed to replicate intrinsic source variability) and yyyy=0000, 0001, …. (must be equal to input_changroups).

Note

WSClean can predict visibilities only into the MODEL_DATA column. MeqSilhouette will copy them into ms_datacolumn, after which the signal corruptions are applied only to ms_datacolumn. Hence, the uncorrupted visibilities are available in MODEL_DATA column for inspection. If MeqTrees is used instead, the uncorrupted visibilities from ms_datacolumn are copied to MODEL_DATA.

ASCII / Tigger LSM format¶

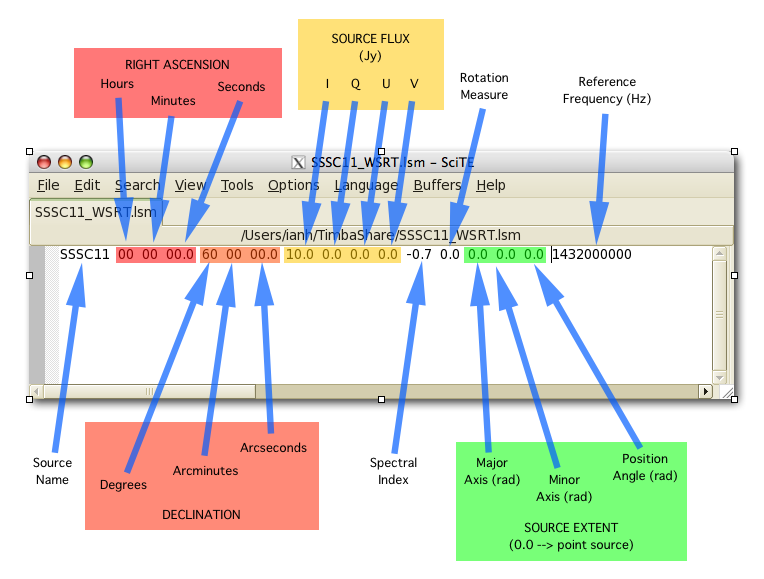

The ASCII / Tigger LSM file with extensions .txt / .lsm.html respectively, are sky model files recognisable by the tigger-lsm module used by MeqTrees. This file contains a list of sources, with each row corresponding to one source. The columns are as shown in the figure below:

Note

It is recommended to use FITS images as inputs (in which case WSClean is used for predicting visibilities) for EHT simulations. MeqTrees has been observed to occasionally give rise to precision errors of up to ~1 micro-arcsecond. Hence, when using ASCII / Tigger LSM files, additional sanity checks must be performed to ensure that the source positions are not offset from the expected values. This is an outstanding issue with MeqTrees and will be resolved in a future version.

Station and site information¶

The parameter station_info points to an ASCII file containing additional information about the participating stations and the site weather parameters for generating the Jones matrices for corrupting the visibilities. Each row corresponds to one station. The details of each column are given below.

Station and site information¶
Column	Type	Units	Explanation
station	string		Station name or code.
sefd	float	Jansky	System Equivalent Flux Density.
pwv	float	millimetres	Precipitable water vapour.
gpress	float	millibar	Ground pressure at site.
gtemp	float	Kelvin	Ground temperature at site.
c_time	float	seconds	Tropospheric coherence time.
ptg_rms	float	arcseconds	RMS error in pointing.
PB_FWHM230	float	arcseconds	Full Width at Half-Maximum of the primary beam.
PB_model	string		Geometric model to be used for the primary beam (‘gaussian’ and ‘cos3’ are available; hardwired to gaussian for now).
ap_eff	float		Aperture efficiency.
g[RL]_mean, g[RL]_std	float		Mean and standard deviation of the normal distribution from which to draw time-varying real/imag parts of the G-Jones terms for R and L feeds.
d[RL]_mean, d[RL]_std	float		Mean and standard deviation of the normal distribution from which to draw frequency-varying real/imag parts of the D-Jones terms for R and L feeds.
feed_angle	float	degrees	Initial feed angle offset.
mount	string		Mount type of each station. Valid values are ‘ALT-AZ’, ‘ALT-AZ+NASMYTH-R’, ‘ALT-AZ+NASMYTH-L’.
